Based out of Canada, Totem Acoustic have gained a strong following in the hi-fi sector over the last 30 years. They have used this knowledge and experience to develop a comprehensive CI range. This extensive line-up covers a wide variety of speaker and subwoofer installation requirements and features their much lauded classic, yet delightful Totem voicing.
Vince Bruzzese talks us through the mighty Kin play Towers at ISE 2023
Totem founder, Vince Bruzzese talks us through just some of Totems 2022 products, at ISE 2022
TRIBE RANGE
TRIBE On Wall
TRIBE III
Sold singularly
Frequency Response (on wall): 40 Hz – 25 kHz ± 3 dB
Recommended Power: 30 – 200 W
Dimensions: HxWxD: 914.4 x 150 x 88.9mm
Impedance: 4 ohms
Sensitivity: 89 dB
Woofer: 2 x Totem hand assembled Torrent 4″ woofers
Tweeter: 1 x 1.25″ Wide dispersion, long throw Fabric dome tweeter
Weight: 13.6 kg
Ultra Slim Design
Vertical or horizontal on-wall mounting
Available in Black or White with colour match Magnetic grills included
Ultimate compliment to flat screens
Ported for maximum bass performance
Bi-wire connectors
Surreal imaging and enormous soundstage
Magnetically attached cloth grilles
For All Totem speakers to achieve their best results, please allow at least 100 hours of breaking in time.
TRIBE V
Sold singularly
Frequency Response (on wall): 34 Hz – 25 kHz ± 3 dB
Recommended Power: 30 – 200 W
Dimensions: HxWxD: 1219.2 x 158.75 x 88.9mm
Impedance: 8 ohms
Sensitivity: 89 dB
Woofer: 4 x Totem hand assembled Torrent 4″ woofers
Tweeter: 1″ Wide dispersion, long throw Titanium dome with 3/8″ aluminium faceplate
Weight: 18 kg
Ultra Slim Design
Vertical or horizontal on-wall mounting
Available in Black or White with colour match Magnetic grills included
Ultimate compliment to flat screens
Ported for maximum bass performance
Bi-wire connectors
Surreal imaging and enormous soundstage
Magnetically attached cloth grilles
For All Totem speakers to achieve their best results, please allow at least 100 hours of breaking in time.
Passive Soundbars
Tribe TRIO
DUO
The two channel Tribe Duo solution bar conveniently and stylishly replaces a pair of full range speakers. Whether wall mounted or placed on furniture, the sealed cabinet conveys an expansive soundstage and vibrant harmonics that are enrapturing and enveloping.
Design: On-Wall Two Channel Solution Soundbar
Available in Black or White Satin with matching Magnetic grills
Cabinet Enclosure: Sealed
Frequency Response: 65 Hz – 25 kHz +/- 3 dB
Recommended Power: 20 – 120W
Woofer: Four 4″/10.16cm Neo-Activated Long Throw
Tweeter: Two .86″ / 2.2mm Laser Etched Textile Soft Dome
Impedance: 8 ohm
Sensitivity: 90dB
Dimensions HxWxD: 157 x 1448 x 90mm
Depth with grille: 100mm
Weight: 10.8kg
Placement from rear wall: Flush – 91.44mm
Sized to fit 65” screens and larger
Sensational on and off axis response
Flush wall mounting system and sound isolation feet included
Break-in Time: 100 hours
Speaker Terminals: Bi-wire, gold connectors
For All Totem speakers to achieve their best results, please allow at least 100 hours of breaking in time.
TRIO
The three channel Tribe Trio Solution Bar packs the front left, centre, and right speakers into one perfectly proportioned enclosure. Whether on wall or table top, Tribe Trio energizes an expansive sound field with vibrant harmonics and gripping presence.
Design: On-Wall Three Channel Solution Bar
Available in Black or White Satin with matching Magnetic grills
Cabinet Enclosure: Ported
Frequency Response: 55Hz-25kHz
Recommended Power: 20-150 W
Woofer: Two .4” / 10.16cm Neo-Activated Long Throw Two 5.75” / 14.6 Long Throw with copper capped voice coil
Tweeter: Three .86″ / 2.2mm Laser Etched Textile Soft Dome
Impedance: 8 ohm
Sensitivity: 89 dB
Dimensions HxWxD: 157 x 1448 x 90mm
Depth with grille : 100mm
Weight: 12.5kg
Placement from rear wall: 91.44mm
Sized to fit 65” screens and larger
Sensational on and off axis response
Flush wall mounting system and sound isolation feet included
Break-in Time: 100 hours
For All Totem speakers to achieve their best results, please allow at least 100 hours of breaking in time.
FORCE
NEW FOR 2022
KIN Force packs proprietary Totem technology into its lean cabinet. Each of the three channels features a pair of our renowned 4” MHEX woofers, to develop powerful bass that defy it’s slender enclosure. The 1” Titanium Infused Soft Dome counterbalances them perfectly with precise, effervescent clarity.
Design: On-Wall Three Channel Kin Soundbar
Available in Black or White Satin with matching Magnetic grills
Cabinet Enclosure: Ported
Frequency Response: 57Hz-21kHz
Recommended Power: 20-125 W
Woofer: 6 x 4” MHEX
Tweeter: 3 x 1” Titanium Infused Soft Dome
Impedance: 6 ohm
Sensitivity: 90 dB
Dimensions HxWxD: 139 x 1200 x 89mm
Weight: 12kg
Sized to fit 55” screens and larger
Sensational on and off axis response
Flush wall mounting system and sound isolation feet included
Break-in Time: 100 hours
For All Totem speakers to achieve their best results, please allow at least 100 hours of breaking in time.
ACTIVE SUBWOOFERS
KIN SUB 8
Enclosure: Bass reflex slot
Driver: 8 Inch Reinforced Fiberglass cone with Butyl rubber surround.
Amplifier: 200W Class D
Frequency response: 29Hz – 200Hz
Voice coil: Enamel resin coated copper wire wound on a vented aluminum former
Dimensions HxWxD: 285 x 265 x 292mm
Weight: 7.5kg
Available in Black or White Satin with matching Magnetic grills
For All Totem speakers to achieve their best results, please allow at least 100 hours of breaking in time.
KIN SUB 10
OPTIONAL WIRELESS LINK TRANSMITTER
Enclosure: Sealed Box
Driver: 10 Inch
Amplifier: 300W RMS
Frequency response: 27Hz – 200Hz
Dimensions HxWxD: 330 x 292 x 345mm
Weight: 14kg
Available in Black or White Satin with matching Magnetic grills
Built in Wireless Link Receiver (Just add optional link wireless transmitter)
For All Totem speakers to achieve their best results, please allow at least 100 hours of breaking in time.
TRIBE SOLUTION SUB
OPTIONAL WIRELESS LINK TRANSMITTER
Dual 8” cones made of high tensile spun fibreglass strands bonded to a cellulose core. Utilizing an oversized ferrite magnet assembly powered by 500 watts of Class D amplification for superb depth, timing and accuracy.
Design: Powered Subwoofer
Enclosure: Sealed
Amplifier: Class D 500 watts
Woofer: Dual 8”
Frequency response: 26 Hz – 200 Hz
Phase: Variable from 0 to 180 degrees
Inputs: Stereo RCA/LFE/Wireless
Power modes: Auto/On
Dimensions HxWxD: 332 x 610 x 115mm (cabinet only)
Dims with feet HxWxD: 336 x 610 x 115mm
Weight: 17.38kg
Available in Black or White Satin with matching Magnetic grills
Built in Wireless Link Receiver (Just add optional link wireless transmitter)
For All Totem speakers to achieve their best results, please allow at least 100 hours of breaking in time.
IN-WALL SUBWOOFERS
IN-WALL DOUBLE 8
The Tribe Sub In-Wall Double 8 incorporates 2 active drivers with stiff ballistic carbon fiber cones and is designed for exactness, speed and musicality allowing it to perform with astonishing presence, no matter the size of your space.
Design: Full back-boxed, high-performance loudspeaker.
Frequency Response: 26 Hz – 200 Hz
Recommended Power: Tribe Sub amp
Woofer: 2 x 8″ / 20.32 cm ballistic carbon fiber cone
Dimensions (w x h x d): 366.7 x 596.9 x 96mm
Cutout: 315 x 569mm
Grille Type: Magnetic white and paintable
Speaker Terminals: Gold plated 5 way banana plugs
Weight: 9.98kg
Two Double 8 subwoofers can be connected to one Tribe Amplifier if they are wired in parallel.
Must be affixed to wood studs, not aluminium
For All Totem speakers to achieve their best results, please allow at least 100 hours of breaking in time.
IN-WALL SUB 12
The Tribe In-Wall Sub 12 incorporates a high power 12 inch driver, featuring a flat sandwich cone design and a 5.25 inch voice coil, with matching 12” Passive. Quick, smooth and articulate, the 12 inch active driver has been specially designed to function in tandem with the passive radiator, permitting quickness, incredible energy flow and unparalleled in-wall musicality.
Design: Full back-boxed, high-performance loudspeaker.
Frequency Response: 22 Hz – 200 Hz
Recommended Power: Tribe Sub amp
Woofer: 1 active and 1 passive 12″/ 30.48 cm multi-layer Kevlar honeycomb
Dimensions (HxWxD): 718 x 428 x 96mm
Cutout (HxD): 690 x 370mm
Grille Type: Magnetic white and paintable
Speaker Terminals: Gold plated 5 way banana plugs
Weight: 9.98kg
Must be affixed to wood studs, not aluminium.
For All Totem speakers to achieve their best results, please allow at least 100 hours of breaking in time.
TRIBE SUB AMPLIFIER
500Watt amplifier for the Totem In-Wall double 8 and The Totem In-Wall sub 12.
Power either 2 x In-Wall double 8 or 1 x In-wall sub 12
Power: 500 watts
Distortion: <0.1% @ Maximum Rated
Output Frequency response: 20Hz – 200Hz
Level Control Adjusts Input Signal Level/Volume
Low Pass Filter: variable from 40Hz – 120Hz, Bypass when turned completely to the right
Phase Control: 0° – 180° continuously variable
Power mode: On/Auto Switch
Line In Connectors: 1 Pair RCA
Line Out Connectors: 1 Pair RCA
Sub selector: Tribe In-wall Sub 8/Tribe In-wall Sub 12
Overall Dimensions incl. Feet (HxWxD): 571.5 x 431.8 x 355.6mm
Width with Rack Ears: 482.6mm
Weight: 6.8 kg
For All Totem speakers to achieve their best results, please allow at least 100 hours of breaking in time.
kin on wall
SOLO

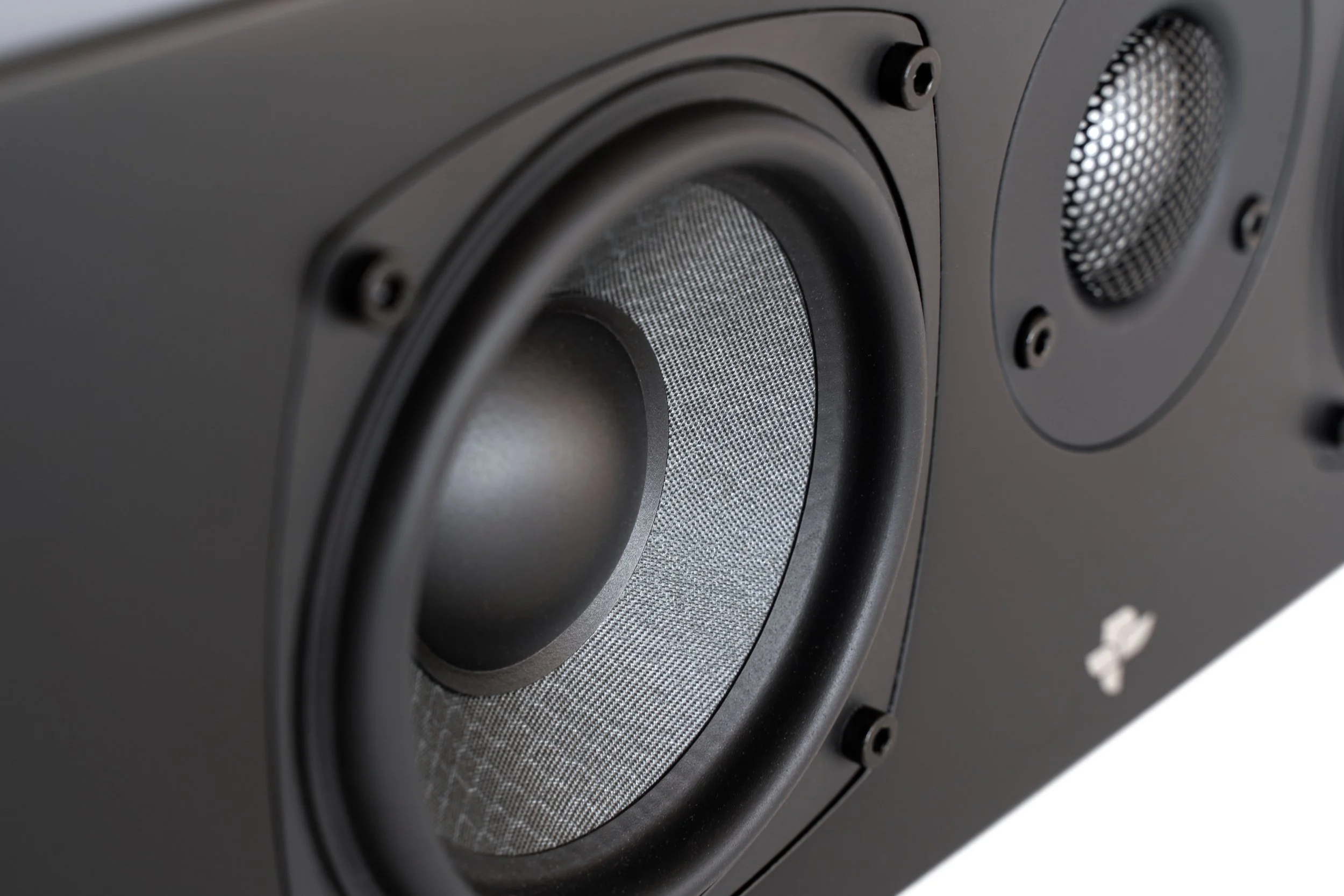

Kin Solo
Proprietary 4” MHEX woofers, composed of multiple layers of phenolic honeycomb and woven synthetics, develop powerful bass that defies the slim enclosure. The 1” Titanium Infused Soft Dome counterbalances them perfectly with precise clarity.
The essence of flair and function, KIN Solo delivers supernatural realization, immersive imaging, and innovative style. Totem created the on-wall category and set the lofty standards. They have been redefined and refined with the Kin Solo.
Sold singularly
Cabinet Enclosure: Ported
Frequency Response: 57Hz-21kHz
Recommended Power: 20-125 W
Woofer: 2 x 4” MHEX
Tweeter: 1” Titanium Infused Soft Dome
Impedance: 6 ohm
Sensitivity: 90 dB
Dimensions HxWxD: 700 x 139 x 89mm
Weight: 5.15kg
Sensational on and off axis response
Flush wall mounting system and sound isolation feet included
Available in Black or White Satin with matching Magnetic grills
For All Totem speakers to achieve their best results, please allow at least 100 hours of breaking in time.

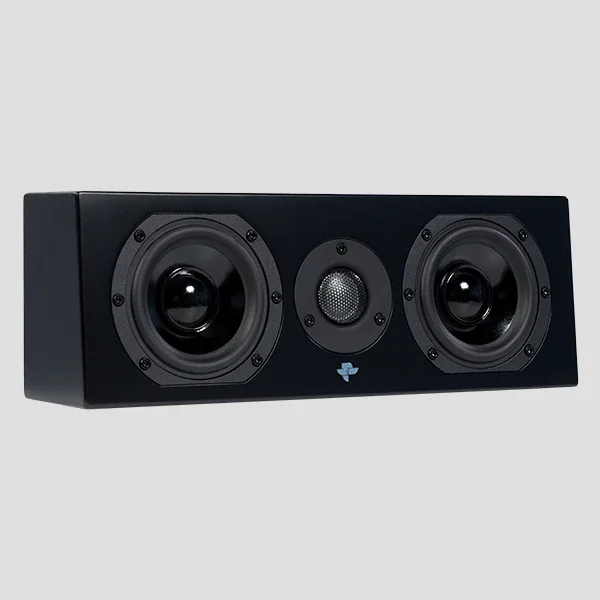

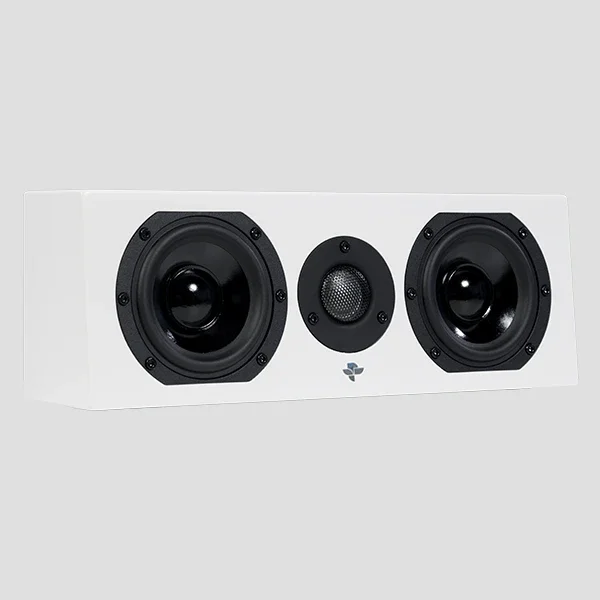

Kin Flex
Ultra-flexible sound solution.
There has never been a speaker as versatile as the ultra-flexible KIN Flex.
Put KIN Flex wherever you want or must. On a table top, in a wall unit, on wall, on ceiling, horizontally, vertically, upside down, even at different heights. Its sealed enclosure, angled baffle, and huge dispersion ensure KIN Flex thrives in any position or location.
Be creative with them. Position three under the TV for the ultimate sound bar. Mount them high and upside down for a stealthy yet full room energizing option. The included wall bracket makes any installation possible, and easy. However you adapt KIN Flex to your lifestyle they will bring your music to life, immerse you into the game, or transport you to the scene.
Frequency Response 95Hz - 22Khz +/- 3dB
Recommended Power: 20-125 W
Impedance: 6 ohm
Sensitivity: 89 dB
Woofers: Dual 4” Natural Hybrid
Tweeter: 1” Titanium Injected Soft Dome
Dimensions (HxWxD): 370mm x 129.8mm x 106.9mm
Weight: 4.28kg
Flush wall mounting system and sound isolation feet included
Available in Black or White Satin with matching Magnetic grills
For All Totem speakers to achieve their best results, please allow at least 100 hours of breaking in time.
